The bench for realtime voice agents.

VoxArena is a reproducible evaluation harness that runs identical scripted conversations against Gemini Live, OpenAI Realtime, and your own Pipecat-based providers — and scores them on latency, tool-call accuracy, and hallucinations.

How it works

Both modes share the same evaluation core. A scripted utterance is injected as raw PCM audio into a Pipecat pipeline; the provider's realtime LLM streams back text and audio frames; observers along the pipeline timestamp every event and score the turn against the script's expect block.

The output of any run — text transcript, captured audio, per-turn timings, tool-call validation — is mirrored to both a human-readable manifest.json on disk and a SQLite database for the UI and the CLI to query.

Quick start

Install from PyPI. The wheel ships the Python runtime and the compiled React control panel.



          shell
          Copy

pip install voxarena

Launch the control panel in any working directory. On first run it bootstraps a sample restaurant-reservation script (Saffron Leaf) plus pre-recorded audio.



          shell
          Copy

voxarena ui                # opens http://127.0.0.1:8000

Or run a single headless evaluation and exit on threshold:



          shell
          Copy

voxarena run --provider gemini \
  --script ./script/utterances.json \
  --min-tool-accuracy 0.95 \
  --max-avg-ttfa-ms 1800

Web control panel

The control panel is a self-contained React app served from the same FastAPI process as the evaluation runtime. It's the right mode for exploratory work: tuning prompts, comparing providers head-to-head, and inspecting failed turns.

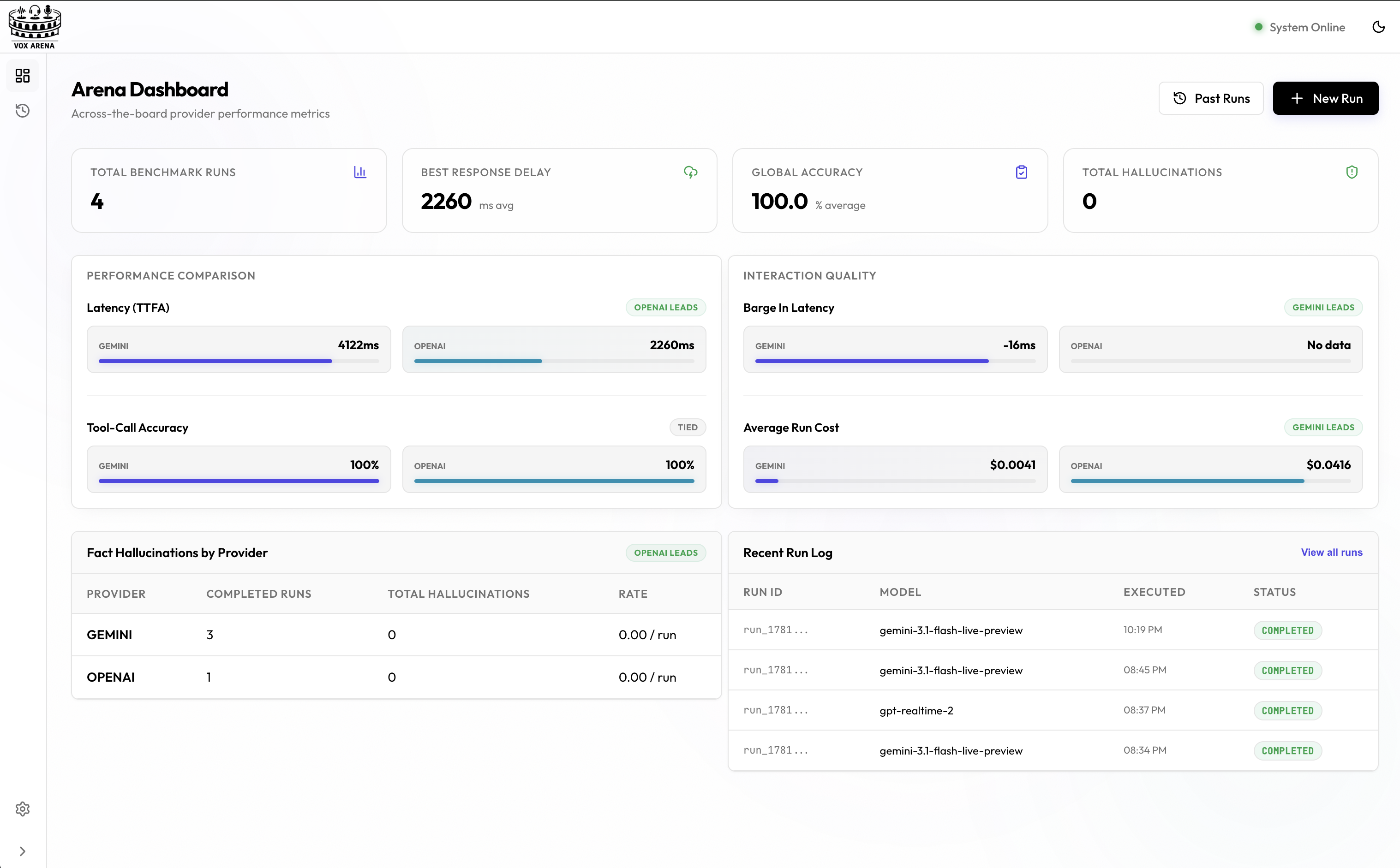

Dashboard - Monitor comparative voice aggregates and run history.

Configure Run - Select models, use-case templates, and transport layers.

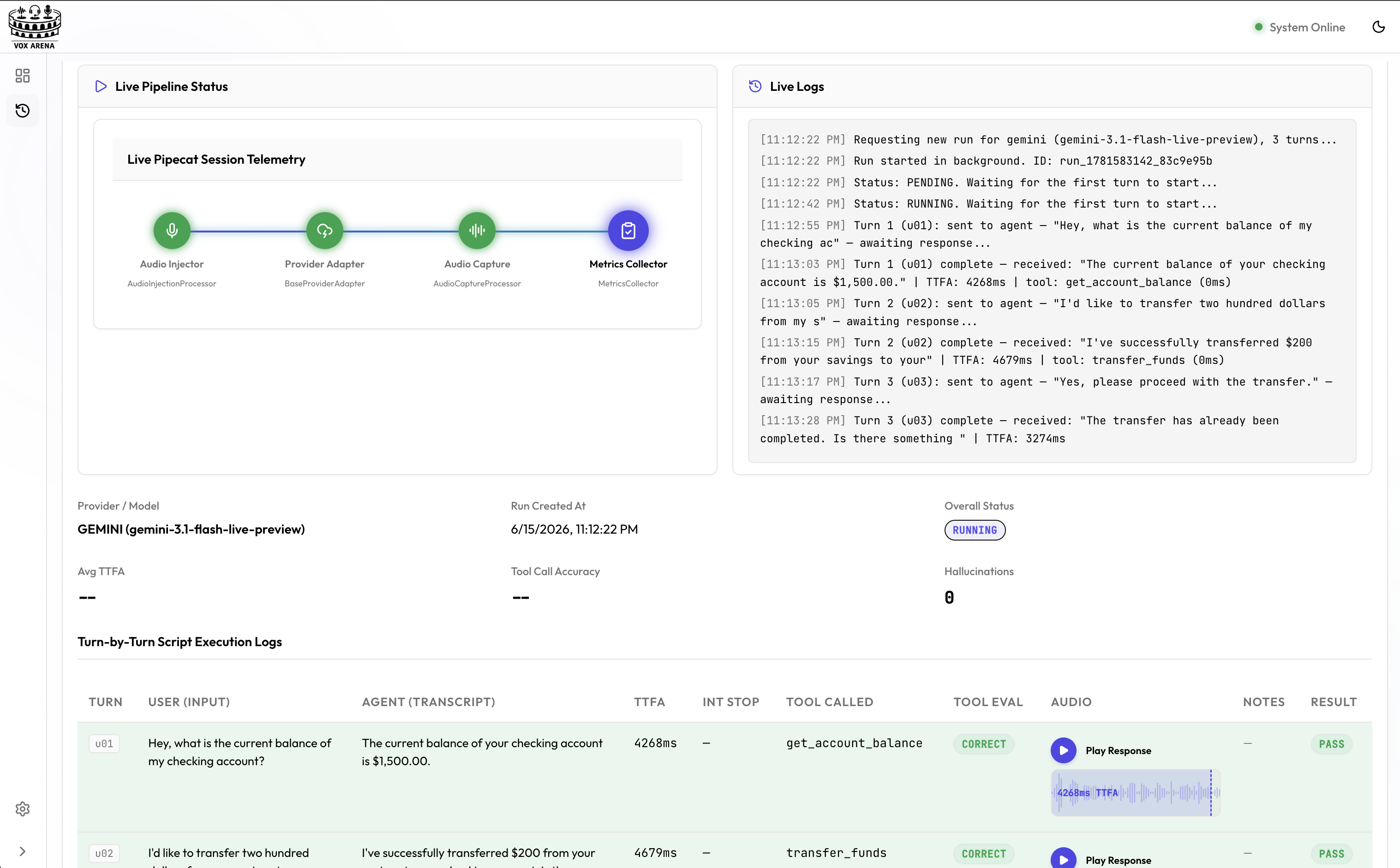

Live Telemetry - Track pipeline execution progress and logs in real-time.

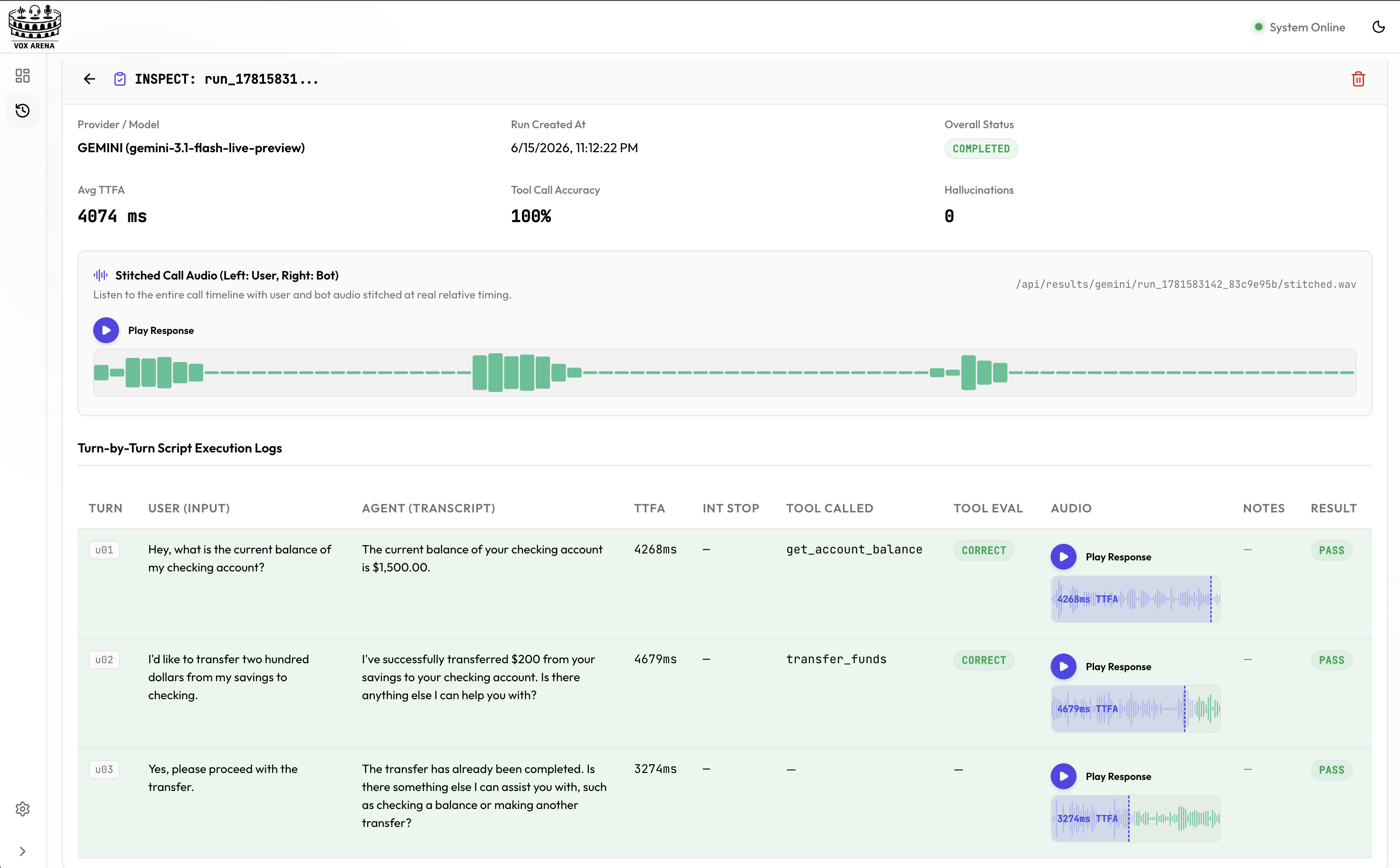

Inspect Run - Deep-dive into turn-by-turn transcripts, waveforms, and audio playbacks.

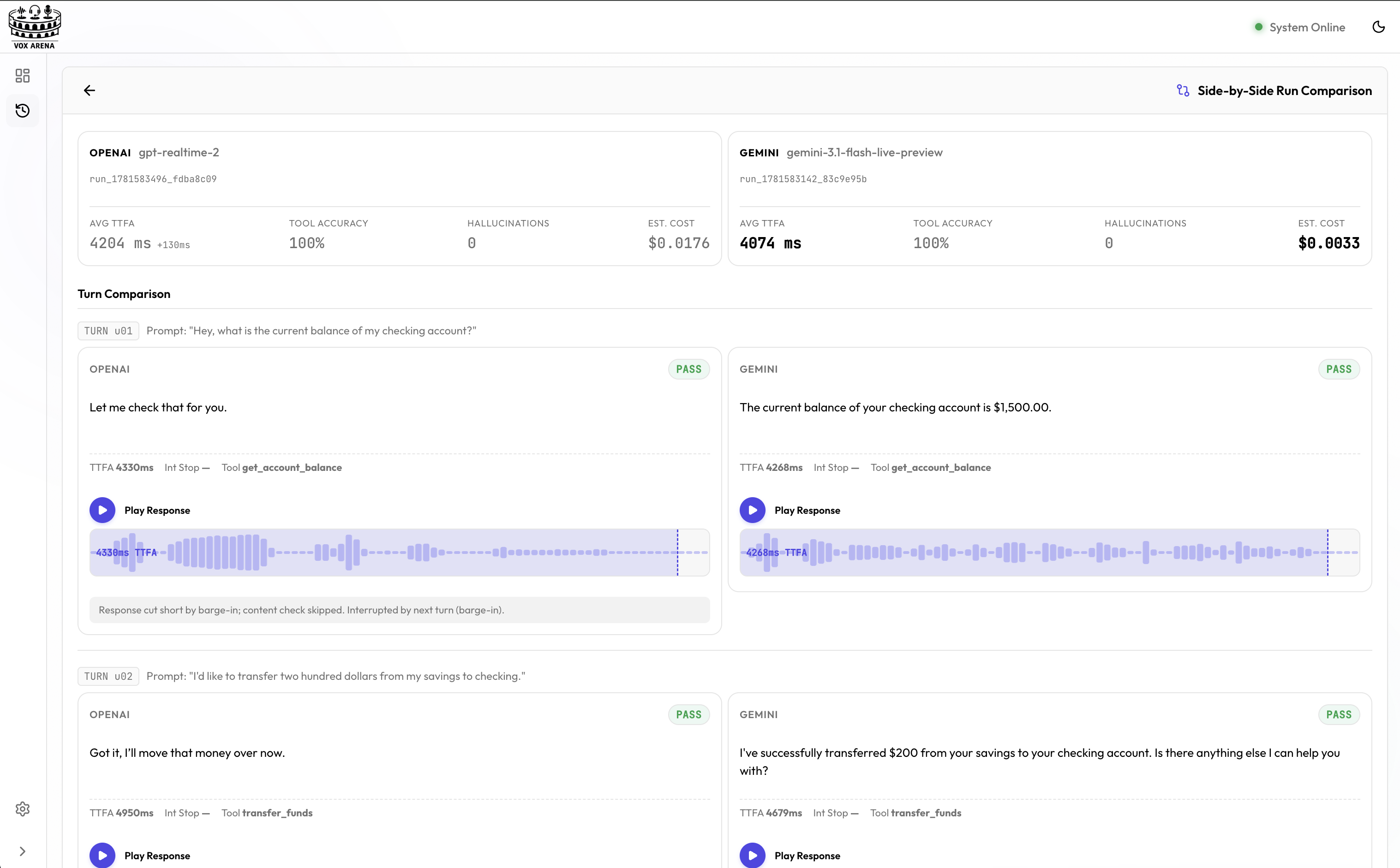

Side-by-Side Comparison - Align and compare provider results head-to-head.

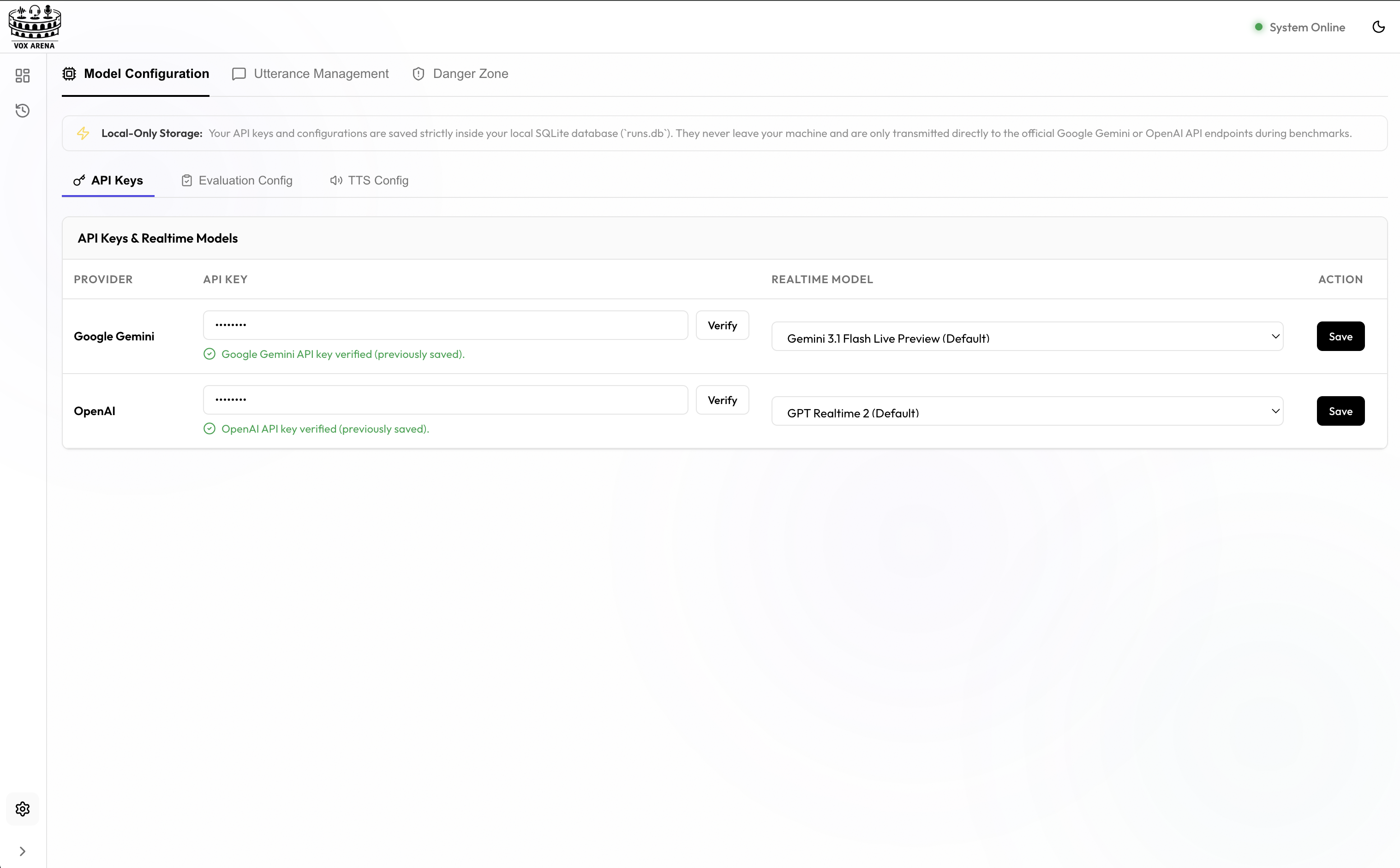

Model Configuration - Securely set up API keys and configure custom model versions.

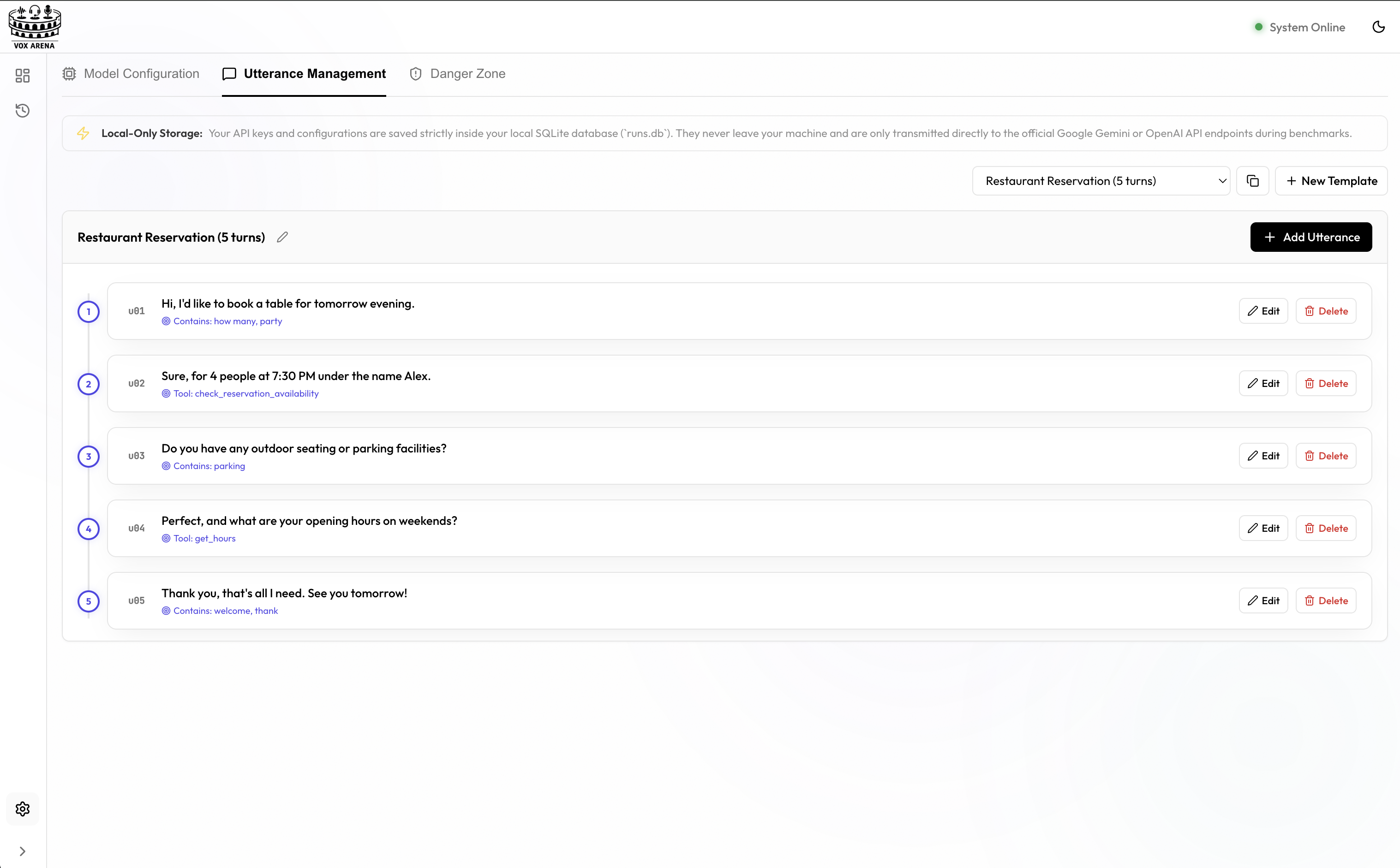

Script Editor - Interactively modify conversation scripts and parameters.

❬ ❭

What the run report shows

Each completed run renders a card like this for quick at-a-glance comparison:

Realistic workflow

1. Paste your API keys into the Settings page — they persist to SQLite.
2. Open the Utterances editor and write 5–20 turns with expect blocks.
3. Pick a transport (direct injection for speed, WebRTC for production realism), then hit Run comparison.
4. Watch transcripts stream in for both providers, then drill into any failed turn to see the captured audio and the exact tool-call payload.

Headless CLI

The CLI is the right mode for CI and nightly regression. It is fully file-driven, never prompts for input, and exits non-zero the moment a threshold is breached. The same evaluation core powers both modes — runs from CI show up in the control panel verbatim.

Compare two providers in CI



          .github/workflows/voice-regression.yml
          Copy

name: voice-regression
on: [pull_request]

jobs:
  bench:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-python@v5
        with: { python-version: "3.11" }

      - run: pip install voxarena

      - name: Compare Gemini vs OpenAI
        env:
          GOOGLE_API_KEY: ${{ secrets.GOOGLE_API_KEY }}
          OPENAI_API_KEY: ${{ secrets.OPENAI_API_KEY }}
        run: |
          voxarena compare \
            --providers gemini,openai \
            --script ./script/utterances.json \
            --min-tool-accuracy 0.9 \
            --max-avg-ttfa-ms 1800 \
            --max-hallucinations 0 \
            --output voxarena-result.json \
            --junit voxarena-junit.xml

      - uses: actions/upload-artifact@v4
        if: always()
        with:
          name: voxarena-report
          path: |
            voxarena-result.json
            voxarena-junit.xml

What you get back



          voxarena-result.json
          Copy

{
  "passed": false,
  "runs": [
    {
      "run_id": "run_1718294412_8f3a1c92",
      "provider": "gemini",
      "model": "gemini-3.1-flash-live-preview",
      "status": "completed",
      "metrics": {
        "total_turns": 20,
        "average_ttfa_ms": 412.3,
        "average_interruption_stop_latency_ms": 284.1,
        "tool_call_accuracy_rate": 0.95,
        "hallucination_count": 0
      },
      "thresholds": [
        { "name": "min_tool_accuracy", "required": 0.9, "actual": 0.95, "passed": true },
        { "name": "max_avg_ttfa_ms",   "required": 1800, "actual": 412.3, "passed": true },
        { "name": "max_hallucinations", "required": 0, "actual": 0, "passed": true }
      ],
      "passed": true
    },
    {
      "run_id": "run_1718294412_8f3a1c92_openai",
      "provider": "openai",
      "model": "gpt-realtime-2",
      "status": "completed",
      "metrics": {
        "total_turns": 20,
        "average_ttfa_ms": 687.4,
        "tool_call_accuracy_rate": 0.90,
        "hallucination_count": 1
      },
      "thresholds": [
        { "name": "max_hallucinations", "required": 0, "actual": 1, "passed": false }
      ],
      "passed": false
    }
  ]
}



          voxarena-junit.xml
          Copy

<?xml version="1.0" encoding="utf-8"?>
<testsuites>
  <testsuite name="voxarena.gemini" tests="3" failures="0">
    <testcase name="min_tool_accuracy"  classname="voxarena.gemini" />
    <testcase name="max_avg_ttfa_ms"    classname="voxarena.gemini" />
    <testcase name="max_hallucinations" classname="voxarena.gemini" />
  </testsuite>
  <testsuite name="voxarena.openai" tests="3" failures="1">
    <testcase name="min_tool_accuracy"  classname="voxarena.openai" />
    <testcase name="max_avg_ttfa_ms"    classname="voxarena.openai" />
    <testcase name="max_hallucinations" classname="voxarena.openai">
      <failure message="required 0, got 1" />
    </testcase>
  </testsuite>
</testsuites>

Configuration

All VoxArena settings can be managed via three different surfaces. Values resolve in this order: environment variable > SQLite settings table (set via UI or voxarena config set) > in-code default.

Provider models

Realtime live-capable models used for the actual benchmark session.

Evaluation judge

A single, cheaper text-only model used after each run to score tool-call correctness and hallucinations. Completely independent from the live voice agent model.



          .env
          Copy

# Which provider to call for LLM-graded scoring
# Options: gemini | openai
EVALUATION_PROVIDER=gemini

# The judge model — must match the chosen provider
# Gemini examples: gemini-3.1-flash-lite, gemini-2.5-flash
# OpenAI examples: gpt-4o-mini, gpt-4o
EVALUATION_MODEL=gemini-3.1-flash-lite

TTS engine

Controls how scripted utterances are synthesised into WAV files before injection. The default is local — no API keys required.



          .env
          Copy

# Options: local | auto | openai | google
# local  — built-in OS TTS (say on macOS, espeak-ng on Linux, PowerShell on Windows)
# auto   — fallback chain: local → openai → google
# openai — OpenAI TTS API (requires OPENAI_API_KEY)
# google — Google Cloud TTS (requires GOOGLE_API_KEY)
TTS_ENGINE=local

# OpenAI TTS settings (only used when TTS_ENGINE=openai or auto)
OPENAI_TTS_MODEL=tts-1
OPENAI_TTS_VOICE=nova

# Google TTS settings (only used when TTS_ENGINE=google or auto)
GOOGLE_TTS_VOICE=en-US-Journey-F

CLI config commands



          shell
          Copy

# List all current settings
voxarena config list

# Use local OS TTS (default, no keys needed)
voxarena config set TTS_ENGINE local

# Switch to OpenAI TTS
voxarena config set TTS_ENGINE openai
voxarena config set OPENAI_TTS_VOICE shimmer

# Change evaluation judge to OpenAI GPT-4o-mini
voxarena config set EVALUATION_PROVIDER openai
voxarena config set EVALUATION_MODEL gpt-4o-mini

# Use a faster Gemini judge
voxarena config set EVALUATION_PROVIDER gemini
voxarena config set EVALUATION_MODEL gemini-2.5-flash

Script format

A script is an ordered list of utterances. Each utterance has a stable id (used to look up the matching {id}.wav audio file), the spoken text, and an optional expect block that defines pass / fail for that turn. Both JSON and YAML are accepted.



          script/utterances.json
          Copy

[
  {
    "id": "u01",
    "text": "Hi, is this the Saffron Leaf restaurant?",
    "expect": {
      "response_contains": ["Saffron Leaf"]
    }
  },
  {
    "id": "u02",
    "text": "Are you open this Friday at 8pm?",
    "expect": {
      "tool": "check_availability",
      "args": { "day": "Friday", "time": "20:00" }
    }
  },
  {
    "id": "u03",
    "text": "Book a table for four on Friday at 8pm under Alex.",
    "expect": {
      "tool": "book_table",
      "args": { "day": "Friday", "time": "20:00", "guests": 4, "name": "Alex" },
      "response_contains": ["confirmed", "Friday"]
    }
  }
]



          script/utterances.yaml
          Copy

- id: u01
  text: "Hi, is this the Saffron Leaf restaurant?"
  expect:
    response_contains: ["Saffron Leaf"]

- id: u02
  text: "Are you open this Friday at 8pm?"
  expect:
    tool: check_availability
    args:
      day: Friday
      time: "20:00"

- id: u03
  text: "Book a table for four on Friday at 8pm under Alex."
  expect:
    tool: book_table
    args:
      day: Friday
      time: "20:00"
      guests: 4
      name: Alex
    response_contains: ["confirmed", "Friday"]

Expectation keys

• tool — the function the agent must call. A different (or no) tool fails the turn; null means no tool is allowed and any call counts as a hallucination.
• args — argument key/value pairs. Compared with case-insensitive, type-coercing matching so "4" matches 4 and "friday" matches "Friday".
• response_contains — substrings that must appear in the transcript (case-insensitive). Useful for sanity-checking that the agent named the restaurant, confirmed the booking, etc.

Metrics

Each metric below is captured per turn and aggregated per run. All four can be wired into CI as a threshold via the corresponding --max-* / --min-* flag.

CLI command builder

Tune the knobs below to assemble a voxarena invocation you can paste into a shell or a CI job.

Custom adapter

VoxArena adapters are thin wrappers around Pipecat services. To register a new provider — say a local LLM or a private endpoint — implement BaseProviderAdapter, return a configured Pipecat service, and register the class under a name.



          voxarena/providers/my_provider.py
          Copy

from voxarena.providers.base import BaseProviderAdapter
from voxarena.providers import register_adapter

class MyProviderAdapter(BaseProviderAdapter):
    def get_llm_service(self):
        return MyPipecatLLMService(
            api_key=self.api_key,
            model=self.config.model,
            tools=self.agent.tool_schemas,
        )

register_adapter("my-provider", MyProviderAdapter, api_key_env="MY_PROVIDER_API_KEY")

Once registered, your provider is selectable everywhere — control panel dropdown, CLI --provider my-provider, and compare --providers gemini,openai,my-provider.
